In the machinery manufacturing industry, warehouses often store a large number of long, circular and plate materials. The storage and management of these materials has always been a difficult problem faced by enterprises. The limitations of traditional shelves in terms of carrying capacity and space utilization make it difficult to improve the storage efficiency and management level of warehouses. In order to solve this problem, Storlogi has designed a set of efficient cantilever shelf solutions based on the actual needs of machinery manufacturing companies, aiming to help companies achieve warehousing upgrades.

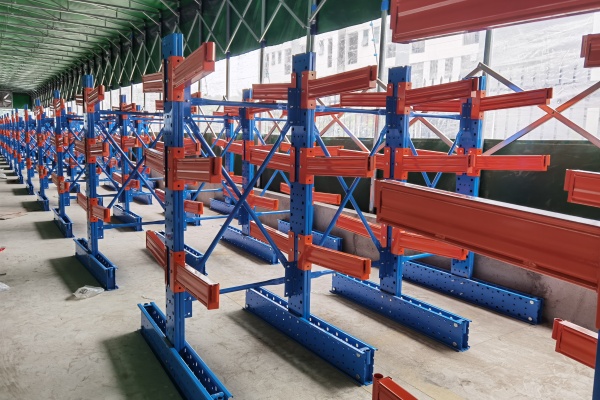

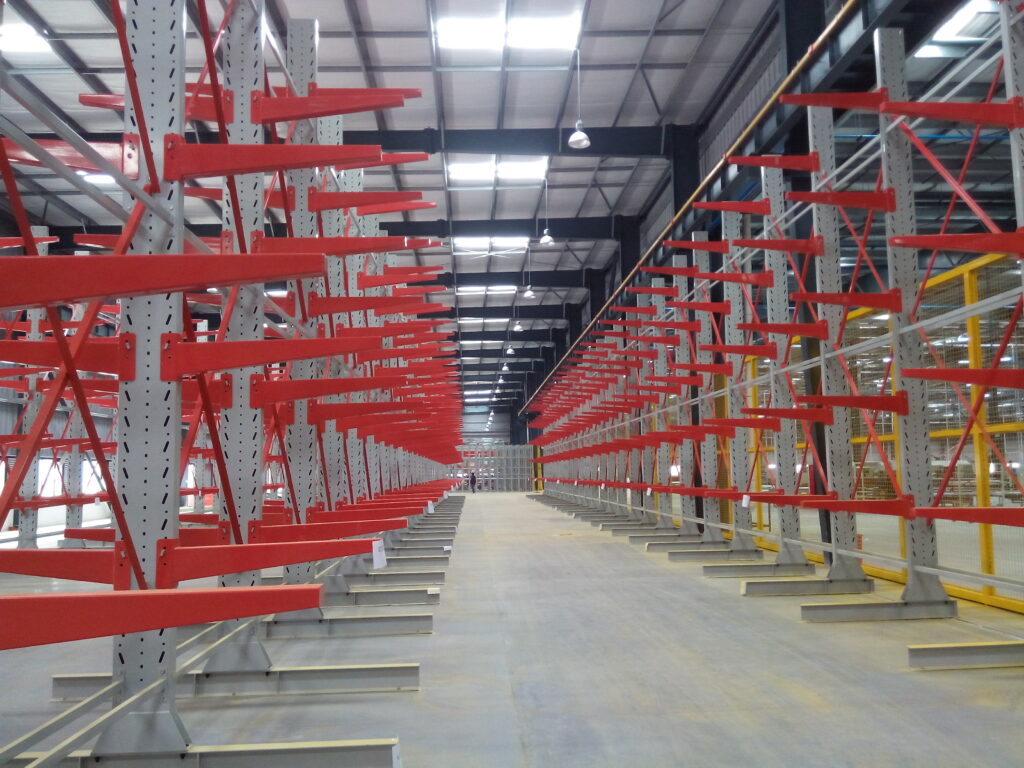

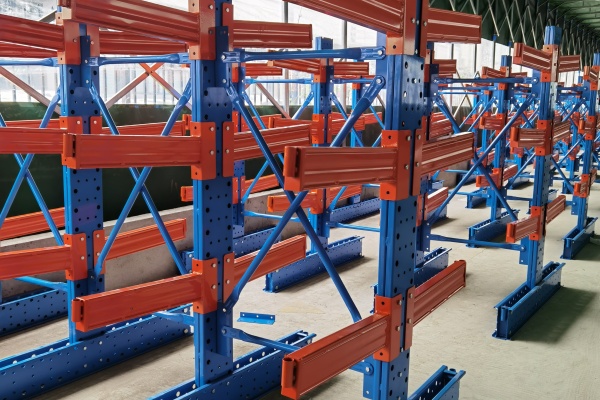

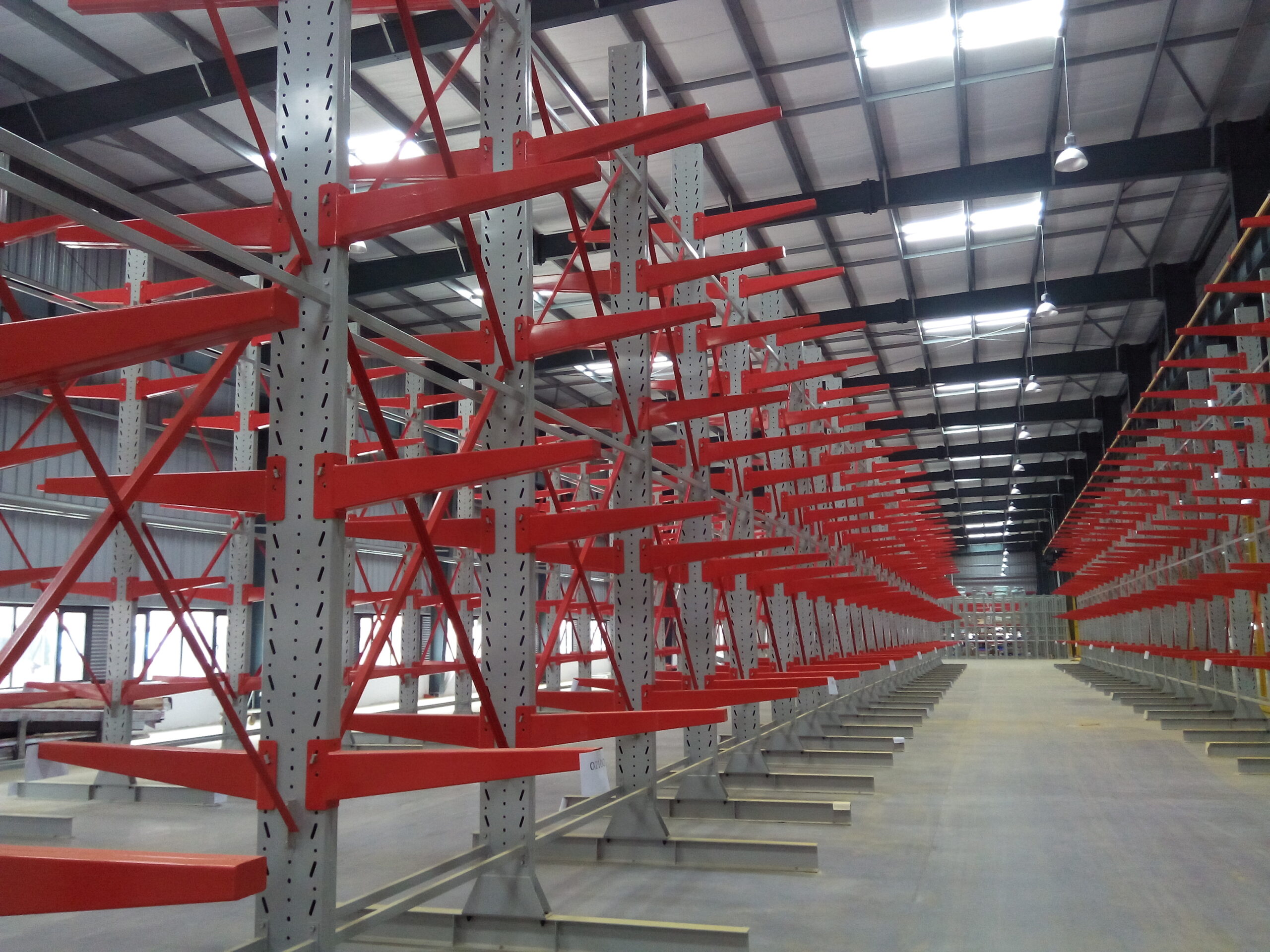

1.Shelf type: double-sided cantilever shelf
2.Column specifications: H-shaped steel columns are used, with specifications of 150mm×75mm×2.0mm. The height can be customized according to the actual height of the warehouse. In this case, the maximum is 4500mm.
3.Cantilever specifications: square tube cantilever, with specifications of 60mm×40mm×1.5mm, and the length can be customized according to the length of the stored materials. In this case, the cantilever length is 1200mm.
4.Carrying capacity: The carrying capacity of each arm reaches 500kg, which meets the company’s needs for storing heavy materials.
5.Connection method: Bolt connection is used between the cantilever and the column, and bolt connection is also used between the base and the column to ensure the stability and safety of the shelf.
6.Anti-corrosion treatment: The surface of the shelf is sprayed with plastic to improve the anti-corrosion performance of the shelf and extend its service life.
7.Accessory configuration: Equipped with horizontal pull rods and inclined pull rods to increase the overall stability of the shelf. At the same time, adjustable column hole distance is provided to facilitate users to adjust the height of the cantilever according to actual needs.
1.Efficient storage: The design of cantilever shelves enables long, circular and plate materials to be stored efficiently and orderly, greatly improving the storage density and space utilization of the warehouse.
2.Safe and stable: High-strength H-shaped steel columns and square tube cantilevers are used to ensure the load-bearing capacity and stability of the shelves. At the same time, horizontal pull rods and inclined pull rods are equipped to further enhance the overall stability of the shelves.
3.Easy to manage: The height of the shelf and the length of the cantilever can be customized according to actual needs, which is convenient for users to classify and identify materials. At the same time, the open design of the shelf makes material storage and access more convenient, improving the management efficiency of the warehouse.
4.Anti-corrosion and durable: The surface of the shelf is sprayed with plastic, which has good anti-corrosion performance, can adapt to various harsh storage environments, and extend the service life of the shelf.
With the continuous development of the machinery manufacturing industry, enterprises have higher and higher requirements for warehousing management. Storlogi cantilever shelf solution has been widely used in machinery manufacturing enterprises due to its high efficiency, safety and easy management. In the future, we will continue to optimize product parameters and technical features, improve the carrying capacity and space utilization of shelves, and provide stronger support for the development of enterprises. At the same time, we will also actively explore new warehousing solutions to meet the actual needs of different industries and enterprises, and promote the innovative development of the warehousing industry.
Through this discussion of cantilever rack solutions, we not only demonstrated the technical characteristics and application advantages of the product, but also conveyed our deep insight and firm commitment to the future development of the warehousing industry. We believe that by working closely with customers and gaining a deep understanding of their actual needs, we can jointly design more efficient, intelligent and safe warehousing solutions.
