Storlogi: Custom Logistics Solutions for Smart Manufacturing

In the era of deep integration between Industry 4.0 and smart manufacturing, production logistics has evolved from a traditional “supporting link” to a core factor determining enterprise flexible production and cost control. As a professional solution provider focused on warehousing and logistics equipment, Storlogi leverages over a decade of industry expertise to deliver customized logistics containers and workstation equipment as core products. We create end-to-end efficient logistics systems spanning “warehousing, storage, line-side delivery, and finished goods shipping” for customers in automotive manufacturing, construction machinery, new energy, and other industries, empowering enterprises to transition from manufacturing to “intelligent manufacturing.”

I. Product Portfolio: Scenario-Driven Deep Customization

Storlogi adheres to the product philosophy of “demand-driven design, technology-enabled scenarios.” Based on material characteristics and flow requirements across different industries, we have built a core product matrix consisting of four categories:

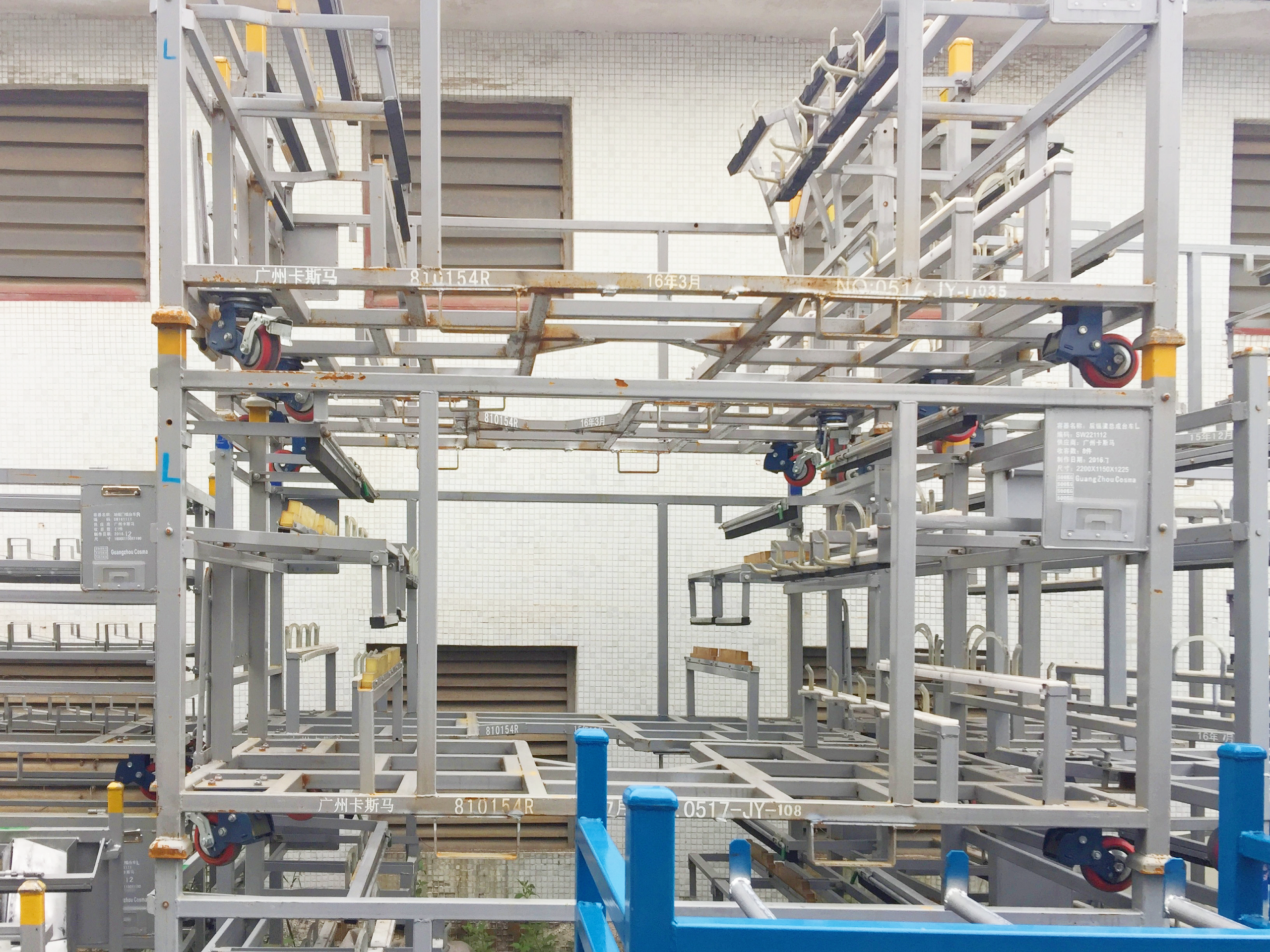

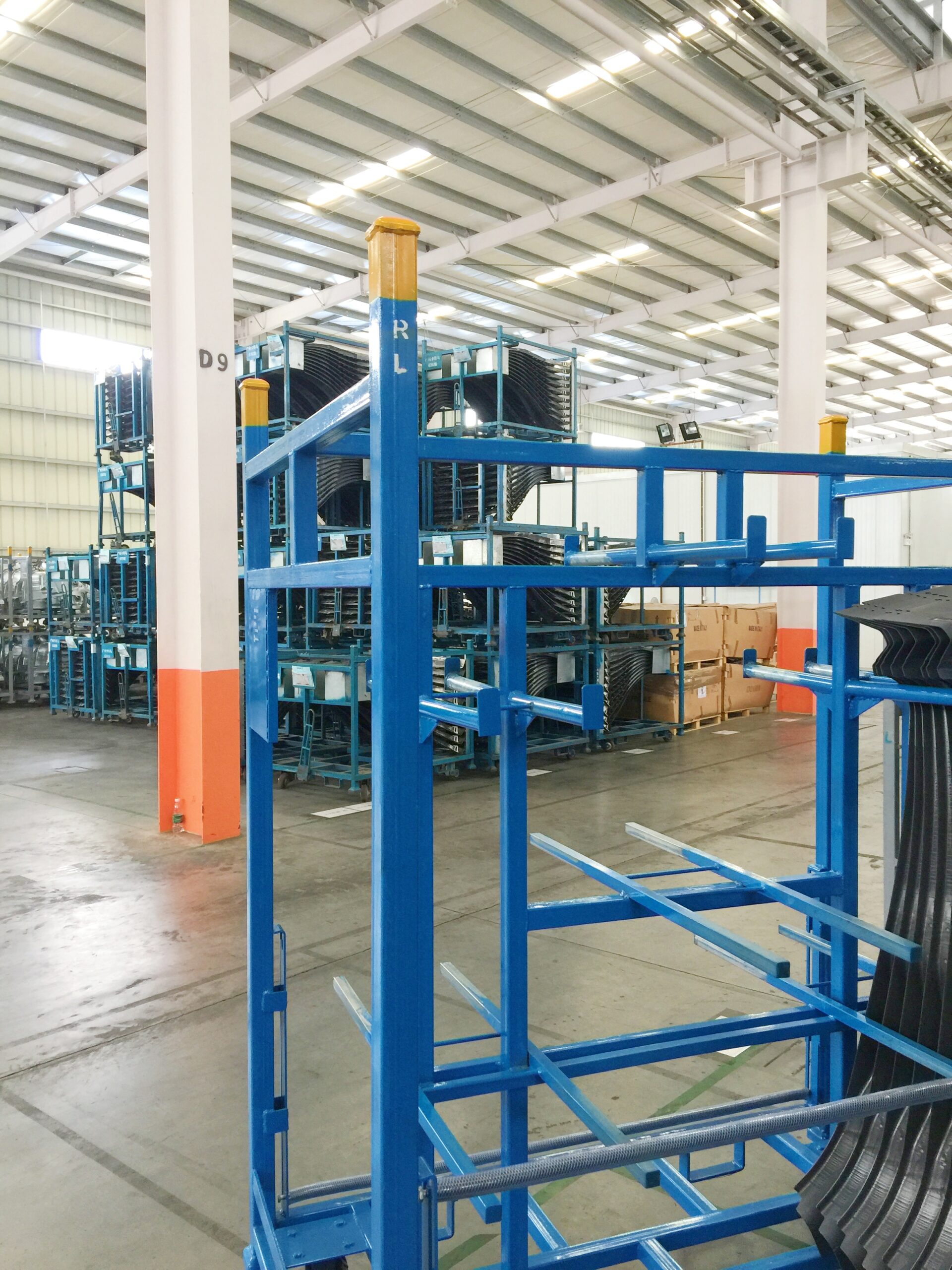

1. Collapsible Stackable Logistics Racks

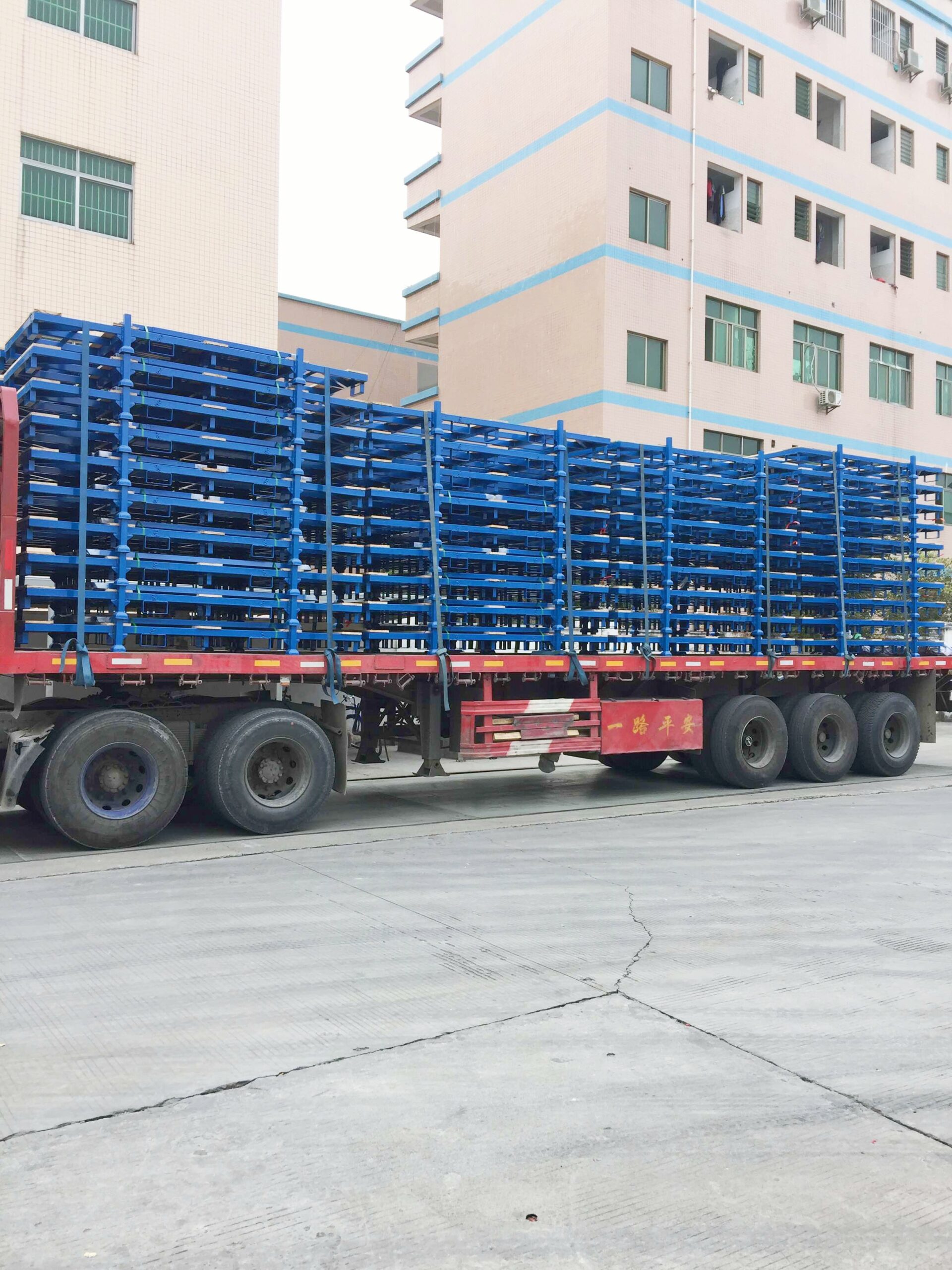

These are core equipment for bulk material storage and cross-plant transportation. Constructed with high-strength H-beams and square tubes, they can be folded to 1/6 of their original volume when empty, significantly reducing return transportation and idle storage costs. When fully loaded, they support up to 6 layers of static stacking, with a maximum single-rack load capacity of 2.5 tons, compatible with forklifts, clamp trucks, and other loading/unloading equipment.

The surface treatment uses epoxy zinc-rich powder coating + UV curing technology, achieving over 1200 hours of corrosion resistance in salt spray tests, suitable for long-term use in harsh environments such as coastal high-salt fog and high humidity. In an application for an automotive parts enterprise, this product increased warehouse space utilization by 45% and reduced annual logistics costs by 18%.

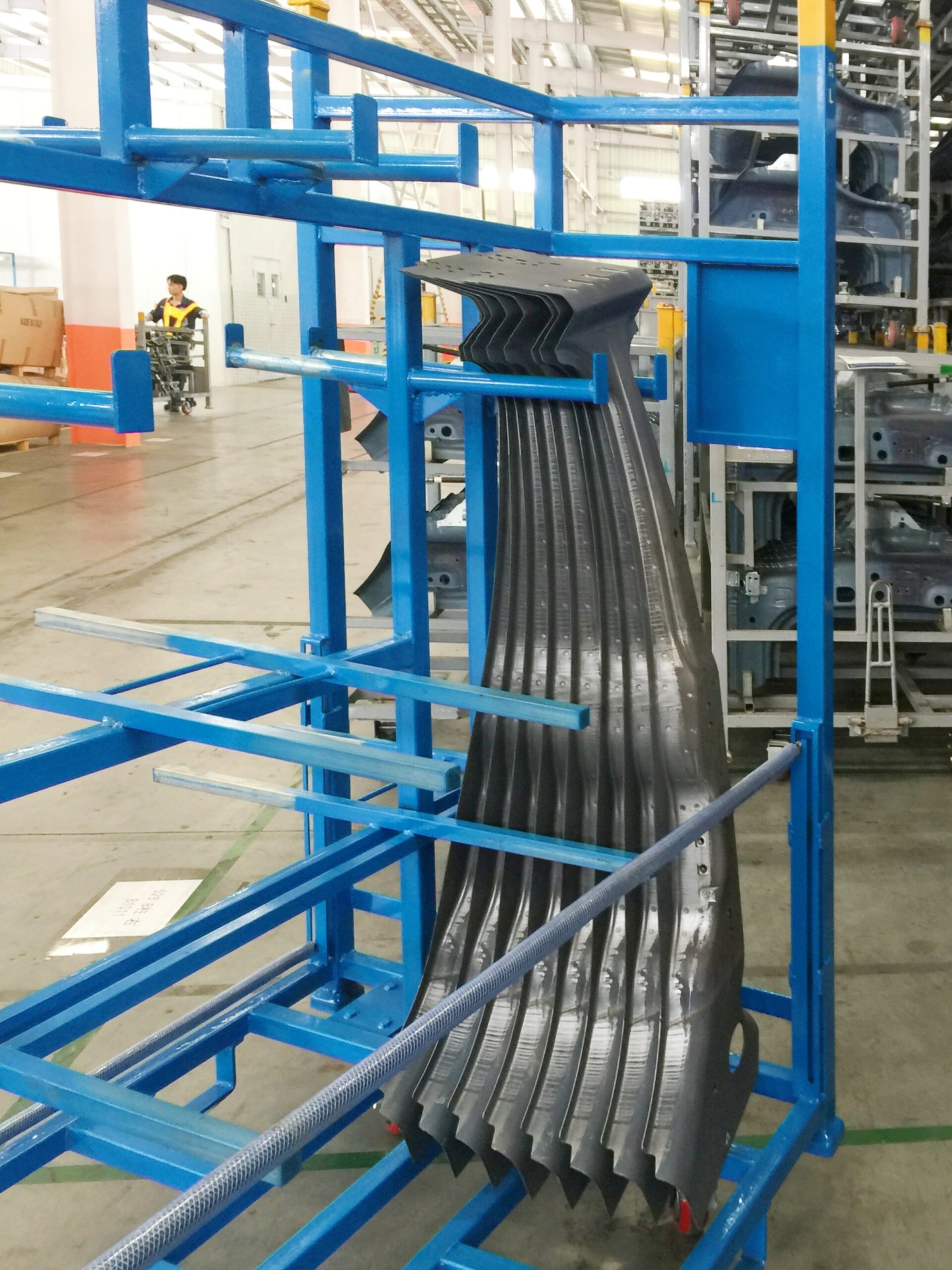

2. Line-Side Workstation Trolleys

These are flexible logistics units designed for dynamic material flow on production lines. Featuring a modular frame structure, they can be customized with hooks, partitions, locating pins, and anti-slip pads based on component shapes, enabling damage-free transportation of irregular materials such as sheet metal parts, wire harnesses, and interior components. Equipped with polyurethane universal wheels that offer silent operation and wear resistance, each wheel supports a load of 600kg, ensuring flexible steering and reliable braking.

Some models integrate traction devices, supporting up to 12-train linkage. Combined with AGV automatic guidance systems, they enable unmanned material delivery to production lines. In the final assembly workshop of a new energy vehicle enterprise, these trolleys improved line-side material picking efficiency by 35% and reduced production downtime by 22%.

3. Heavy-Duty Intelligent Shelving

This is a load-bearing equipment for automated warehouses and high-value spare parts storage. Using a beam-type plug-in structure, the shelf panels are 6mm thick, with a maximum single-layer load capacity of 3.5 tons. The connection nodes between columns and beams adopt a patented self-locking buckle design, paired with anti-slip and seismic foot pads, ensuring structural stability even in regions with a seismic intensity of 9 degrees.

This series of shelves can be optionally equipped with RFID smart tags and weight sensors, which collect real-time material inventory data and synchronize it to the WMS system, enabling visual inventory management. In an application for a construction machinery enterprise’s spare parts warehouse, inventory turnover rate increased by 28% and inventory counting efficiency improved by 60%.

4. Anti-Static Logistics Containers

These are specialized storage solutions for electrostatic-sensitive materials such as electronic components and power batteries. Using a combination of carbon fiber composite materials and conductive coatings, the surface resistance is stably maintained at 10^6-10^9Ω, effectively eliminating the risk of electrostatic accumulation. The interior is designed with buffer cushions and locating slots, controlling vibration acceleration during transportation to within 0.8g, ensuring product quality.

At a power battery production base, these containers successfully solved the problem of electrostatic damage during cell transportation, reducing material loss rate from 0.7% to 0.08% and saving over 3 million yuan annually.

II. Core Technology: Engineering Strength Drives Product Competitiveness

Storlogi has established a full-process technology system of “R&D, testing, and verification,” delivering products and services that exceed industry standards through three core technical advantages:

1. Structural Optimization & Finite Element Analysis

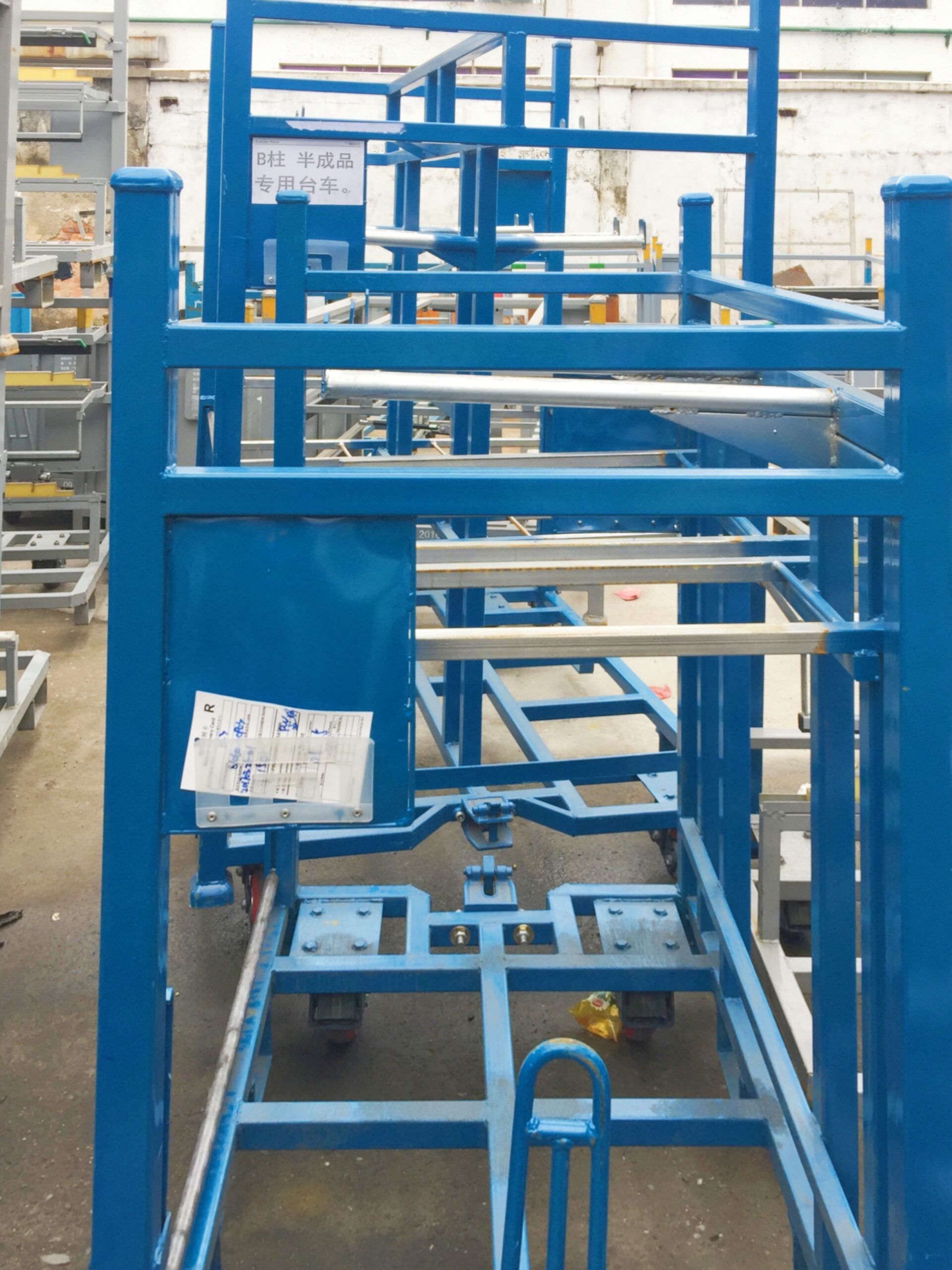

Leveraging the ANSYS finite element analysis platform, we conduct mechanical simulations and topology optimization of product frames. For example, in the design of a dedicated workstation equipment for automotive B-pillars, we optimized the layout of load-bearing beams, reducing the original 14 beams to 9, decreasing overall weight by 23% while increasing bending strength by 15%, achieving a balance between lightweight design and high load capacity.

2. Automated Surface Treatment Process

We have introduced a fully automated surface treatment production line, including four key processes: “ultrasonic degreasing, phosphating rust removal, electrostatic spraying, and high-temperature curing.” In the pre-treatment stage, nano-level phosphating increases coating adhesion by 35% compared to the industry average. The spraying process uses electrostatic rotary bell technology, achieving over 92% paint utilization, reducing VOC emissions, and ensuring coating uniformity and durability.

3. Digital Customization Capability

We have built a digital design platform integrating 3D scanning, reverse modeling, and rapid simulation, enabling full-process response from demand research to solution delivery within 48 hours. For a joint venture automotive enterprise’s white body material transportation needs, we obtained precise dimensions through 3D scanning, designing a dedicated equipment that reduced material collision loss rate from 0.9% to 0.12%, cutting annual quality losses by over 2.6 million yuan.

III. Industry Solutions: Deep Integration with Manufacturing Scenarios

Storlogi’s products are widely used in automotive OEMs and parts, construction machinery, rail transit, new energy, and other industries. Here are the practical outcomes of typical scenarios:

Automotive Manufacturing Industry

In stamping workshops, our stackable racks enable three-dimensional storage of steel coils, increasing workshop storage density by 42%. In welding workshops, customized workstation equipment improves stamping part transportation efficiency by 30% through zoned positioning design. On final assembly lines, intelligent trolleys combined with AGV systems achieve on-demand precise material delivery, increasing line-side inventory turnover rate by 27%.

Construction Machinery Industry

To meet the storage needs of large structural parts, we developed cantilever-type heavy-duty shelving that accommodates materials from 1 to 8 meters in length. With adjustable layer spacing, it reduced raw material warehouse area by 2,200 square meters, saving over 1.2 million yuan annually in rental costs. Meanwhile, customized trolleys reduced structural part transportation loss rate from 1.2% to 0.2%.

New Energy Industry

In power battery production scenarios, our combined solution of anti-static logistics containers and intelligent shelving enables full-process traceability and safety control of cells from raw materials to finished products. After adoption by a leading battery enterprise, material traceability efficiency increased by 70% and safety accident rate decreased by 95%.

IV. Service System: Full-Lifecycle Support from Delivery to Operation

Storlogi recognizes that high-quality logistics equipment relies not only on the product itself but also on full-lifecycle service support. We provide customers with:

• Pre-Sales Diagnosis & Planning: Our professional engineering team conducts on-site assessments, identifies logistics bottlenecks through VSM value stream analysis, and delivers comprehensive solutions including layout optimization and equipment selection.
• Production Control & Quality Traceability: We use MES systems for real-time production monitoring, with quality traceability QR codes at key processes to ensure product consistency and traceability.
• Installation, Commissioning & Training: We offer on-site installation guidance, load testing, and operational training to ensure seamless integration of equipment with existing customer systems and rapid employee proficiency.
• Operation & Maintenance Upgrades & Value-Added Services: We have established an equipment health management system that predicts maintenance needs through sensor data, and provides services such as trade-in, structural upgrades, and digital transformation.

V. Future Strategy: Advancing Towards a Green and Intelligent Logistics Ecosystem

In response to the “dual carbon” goals and the development trend of smart manufacturing, Storlogi is actively pursuing two strategic directions:

1. Lightweight & Green Material Application: We plan to increase the proportion of aluminum-magnesium alloys and carbon fiber composites in our products to 35% within the next three years, further reducing equipment weight and carbon emissions.
2. Digital Twin & IoT Integration: We are deepening the integration of digital twin technology in logistics equipment to achieve full-lifecycle digital management of devices, providing customers with more accurate operational decision-making support.

---

As a deep-rooted player in the industrial logistics field, Storlogi remains committed to the mission of “enabling efficient flow of every material.” We believe that through continuous technological innovation and scenario-focused expertise, we will become a solid partner for Chinese manufacturing enterprises on their journey towards high-quality development.
